Product Name:Water Distributor I
Category:FRP & Stainless Steel Housing Vessel
Item No.:
Spec:
Packing:
  •  Description

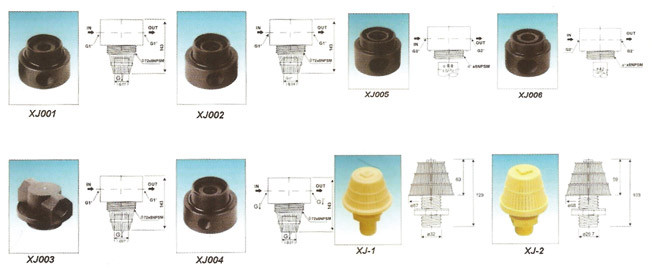

Serial No Item No Diameter (inches/mm)
GL8101 XJ-001 6"~12"(Ø150-300mm)
GL8102 XJ-002 6"~12"(Ø150-300mm)
GL8103 XJ-003 6"~12"(Ø150-300mm)
GL8104 XJ-004 6"~12"(Ø150-300mm)
GL8105 XJ-005 16"~36"(Ø4000-900mm)
GL8106 XJ-006 16"~24"(Ø400-600mm)
GL8108 XJ-008 12"~18"(Ø300-450mm)
Serial No Item NO Flow Material
GL8201 XJ-1 1T/H ABS
GL8102 XJ-2 0.5T/H ABS

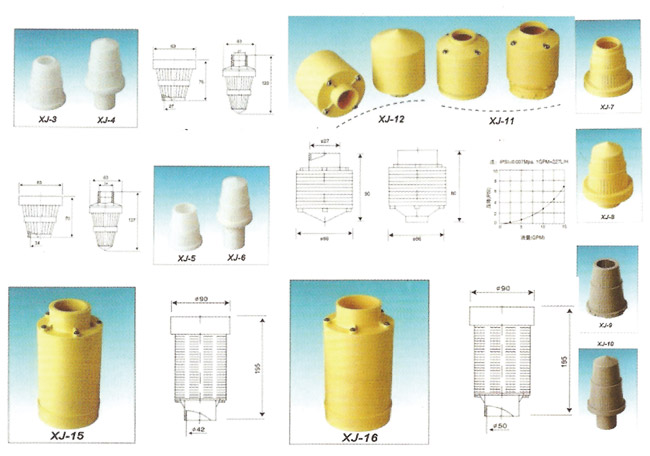

Serial No Item No Discription Diameter (inches/mm)
GL8203 XJ-3 3/4 top distributor 6"~12" (c 150-300 mm)
GL8204 XJ-4 3/4 bottom distributor 6"~12" (c 150-300 mm)
GL8205 XJ-5 1" top distributor 6"~16" (c 150-400 mm)
GL8206 XJ-6 1 bottom distributor 6"~16" (c 150-400 mm)
GL8207 XJ-7 Autotrol top distributor 6"~12" (c 150-300 mm)
GL8208 XJ-8 Autotrol bottom distributor 6"~12" (c 150-300 mm)
GL8209 XJ-9 Fleck top distributor 6"~12" (c 150-300 mm)
GL8210 XJ-10 Fleck bottom distributor 6"~12" (c 150-300 mm)
GL8211 XJ-11 3/4 top distributor 6"~16" (c 150-400 mm)
GL8212 XJ-12 3/4 bottom distributor 6"~16" (c 150-400 mm)
GL8213 XJ-13 1" top distributor 6"~12" (c 150-300 mm)
GL8214 XJ-14 1" bottom distributor 6"~12" (c 150-300 mm)
GL8215 XJ-15 180 top stack screen 6"~12" (c 150-300 mm)
GL8216 XJ-16 182 top stack screen 6"~12" (c 150-300 mm)

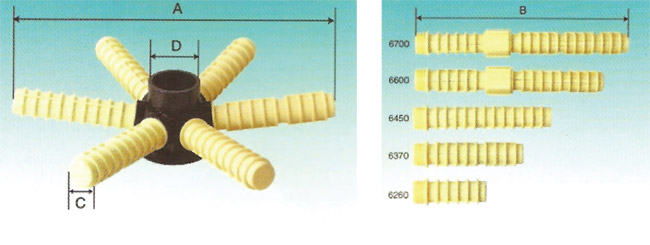

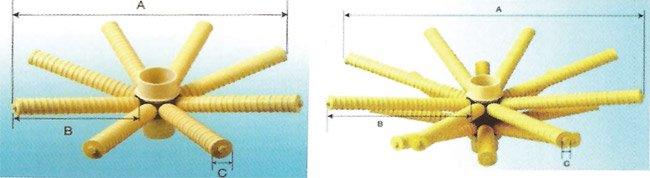

Serial No Item No Dimensions(mm) Diameter(inches/mm) Top opening
A B C D
GL8301 XJ6260 260 82 35 50/42 12"-24"(Ø300mm-400mm) 4"~8" Thread
GL8302 XJ6370 370 136 35 50/42 18"-21"(Ø450mm-550mm) 4"~8" Thread
GL8303

XJ6450

460 182 35 50/42 24"(Ø600mm) 4"~8" Thread
GL8304 XJ6600 620 260 35 50/42 30"(Ø750mm) 4"~8" Thread
GL8305 XJ6700 710 305 35 50/42 36"(Ø900mm) 4"~8" Thread

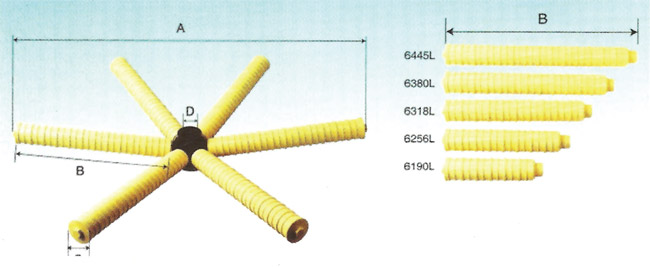

GL8306 XJ6190L 498 190 53 50/42 24"(Ø600mm) 4"~8" Thread
GL8307 XJ6256L 618 256 53 50/42 30"(Ø750mm) 4"~8" Thread
GL8308 XJ6318L 738 318 53 50/42 36"(Ø900mm) 4"~8" Thread
GL8309 XJ6380L 858 380 53 50/42 40"(Ø1000mm) 4"~8" Thread
GL8310 XJ6445L 988 445 53 50/42 48"(Ø1200mm) 4"~8" Thread

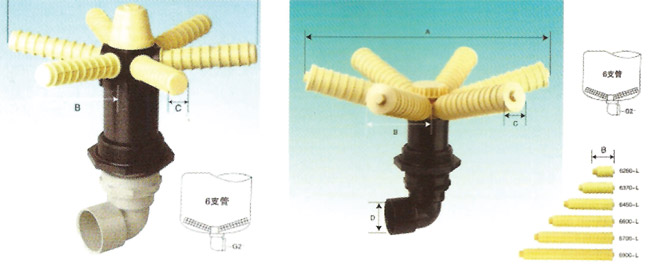

GL8311 XJ5671 180 400 88 - 30"(Ø750mm) 4"~8" Thread
GL8312 XJ5671L 242 472 88 - 30"-40"(Ø750mm-1000mm) 4"~8" Thread
GL8313 XJ5672L 310 540 88 - 36"-40"(Ø900mm-1000mm) 4"~8" Thread
GL8314 XJ6260 260 82 35 - 12"-16"(Ø300mm-400mm) 4"~8" Thread
GL8315 XJ6370 370 136 35 - 18"-21"(Ø450mm-550mm) 4"~8" Thread
GL8316 XJ6450 460 182 35 -

24"(Ø600mm)

4"~8" Thread
GL8317 XJ6600 620 260 35 - 30"(Ø750mm) 4"~8" Thread
GL8318 XJ6700 710 305 35 - 36"(Ø900mm) 4"~8" Thread
GL8319 XJ6190L 498 190 53 - 24"(Ø600mm) 4"~8" Thread
GL8320 XJ6256L 618 256 53 - 30"(Ø750mm) 4"~8" Thread
GL8321 XJ6318L 738 318 53 - 36"(Ø900mm) 4"~8" Thread
GL8322 XJ6380 858 380 53 - 40"(Ø1000mm) 4"~8" Thread
GL8323 XJ6445L 988 445 53 - 48"(Ø1200mm) 4"~8" Thread
