Product Name:Manual muti-port vale
Category:Filter & Softener Controller
Item No.:
Spec:
Packing:
  •  Description

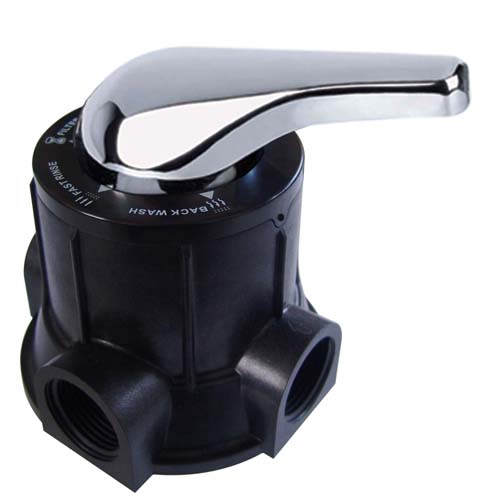

TM.F56A





TM.F56A/E/F
Product Characteristics:
Adopt the hight degree pottery, seal slice with scuff resistance, corrosion proof, perfect sealing,and long time for using.
reasonable fluid design:Service-Fast Rinse-Backwash-Fast Rinse-Service.
Small rotation angle for closing and opening, It feels well for operation.
It coule operate with pressure,no leakage.

Control model:Manual

Suited pressure:0.1~0.6MPa

Stuited water temperature:5~45


Range of Application
Household Purify,Soften System.
Boiler Softening Water System.
RO Rre-treatment System.

Technical Parameter

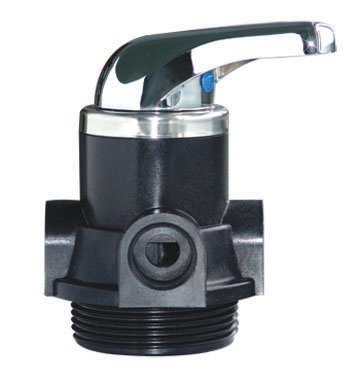

TM.F56E

                      Model
Parameter
TM.F56A TM.F56E TM.F56F
Inlet 1"F 3/4"F or 1/2"F 1"F
Outlet  1"F 3/4"F or 1/2"F 1"F
Drain  1"F 1/2"F or 3/4"F   1"F
Riset Pipe  1.05"OD 1.05"OD  1"D-GB
Base  2-1/2"-8NPSM 2-1/2"-8NPSM  2-1/2"-8NPSM
Water Capacity  4.5m3/h  2m3/h  6m3/h

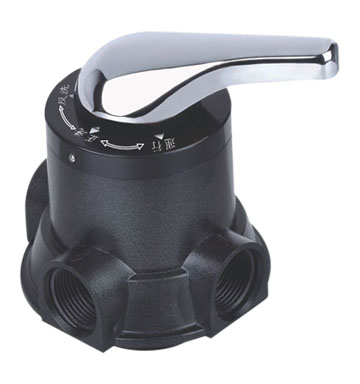

TM.F56F

























 TM.F52 & TM.F56B/C



Product Characteristics

Adopt the hight degree pottery, seal slice with scuff resistance, corrosion proof, perfect sealing,and long time for using.
reasonable fluid design:Service-Fast Rinse-Backwash-Fast Rinse-Service.
Small rotation angle for closing and opening, It feels well for operation.
It coule operate with pressure,no leakage.

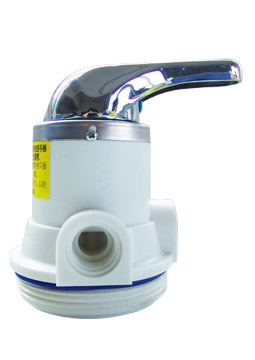

TM.F52



Control model:Manual

Suited pressure:0.1~0.6MPa

Stuited water temperature:5~45℃

Range of Application
Household Purify,Soften System.
Boiler Softening Water System.
RO Rre-treatment System.

Technical Parameter

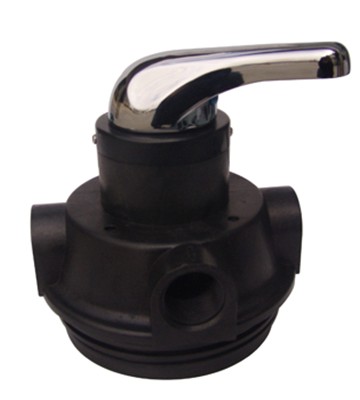

TM.F56C

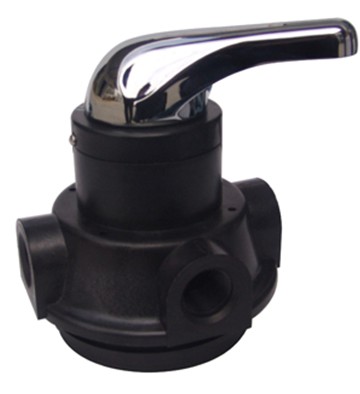

TM.F56B

          Model
Parameter
TM.F52 TM.F56B TM.F56C
Inlet 1/2"F 1/2"F or 3/4"F 1/2"F or 3/4"F
Outlet 1/2"F 1/2"F or 3/4"F 1/2"F or 3/4"F
Drain 1/2"F 1/2"F or 3/4"F 1/2"F or 3/4"F
Riser Pipe Φ16.5mm 1.05"OD 1.05"OD
Base M82x3

F56B1:Φ95 rectangle whorl   F56B2:Φ98rectangle whorl

F56C1:Φ118 rectangle whorl             F56C2:Φ115 rectangle whorl  F56C3:Φ110 rectangle whorl
Water capacity 1m3/h 1m3/h 1m3/h












TM.F56D

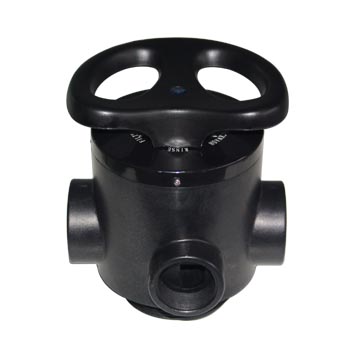

TM.F56D top-mounted


Product Characteristics:

Adopt the hight degree pottery, seal slice with scuff resistance, corrosion proof, perfect sealing,and long time for using.
reasonable fluid design:Service-Fast Rinse-Backwash-Fast Rinse-Service.
Small rotation angle for closing and opening, It feels well for operation.
It coule operate with pressure,no leakage.

Range of Application
Household Purify,Soften System.
Boiler Softening Water System.
RO Rre-treatment System.

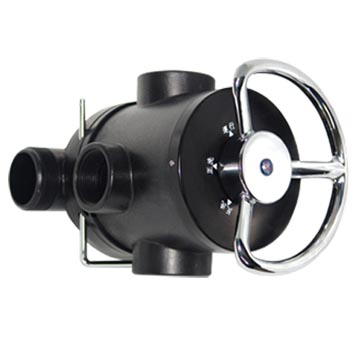

TM.F56D side-mounted




Control model: Manual
Suited pressure:0.1~0.6MPa
Suited water temperature:5~45℃

 Technical parameter

Inlet 2"F
Outlet 2"F
Drain

1-2/2"F

Riser pipe

1-2/2"D-GB

Base 4"-8UN
Water capacity 10m3/h
Top and Bottom 2"
The top and bottom of connector for side-mounted 2"

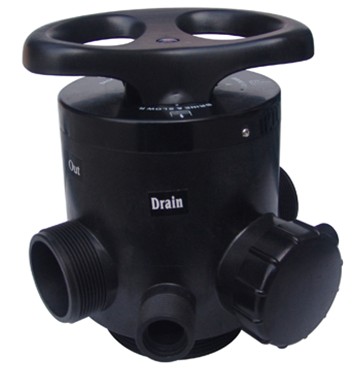

TM.F64D/F top-mounted








TM.F64A/B/C/D/F

Product Characteristics
Adopt the hight degree pottery, seal slice with scuff resistance, corrosion proof, perfect sealing,and long time for using.
reasonable fluid design:Service-Fast Rinse-Backwash-Fast Rinse-Service.
Small rotation angle for closing and opening, It feels well for operation.
It coule operate with pressure,no leakage.

Control model: Manual
Suited pressure:0.1~0.6MPa
Suited water temperature:5~45℃

Range of Application
Household Purify,Soften System.
Boiler Softening Water System.
RO Rre-treatment System.

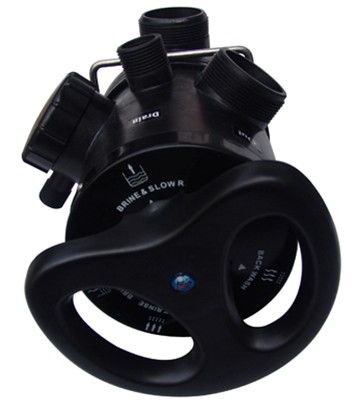

TM.F64D/F side-mounted



          Model
Parameter
TM.F64A TM.F64A TM.F64A TM.F64A TM.F64A
Inlet 1"F 3/4"F 3/4"F 2"M 1-2/2"M
Outlet 1"F 3/4"F 3/4"F 2"M 1-2/2"M
Drain 1/2"M 1/2"M 1/2"M 1"M 3/4"M
Riser pipe 1.05" OD 1.05" OD 1.05" OD 1.05" OD 1.05" OD
Base 2-1/2-8NPSM 2-1/2-8NPSM 2-1/2-8NPSM 4"-8UN 4"-8UN
Brine line connctor 3/8"M 3/8"M 3/8"M 1/2" M 1/2" M
Water capacity 4.5m3/h 2m3/h 2m3/h 10m3/h 8m3/h

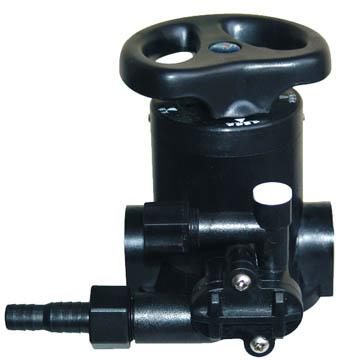

TM.F64B/C

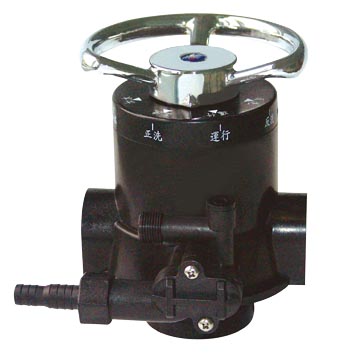

TM.F64A
