Product Name:CV-CVF Series
Category:CV-CVF Series
Item No.:
Spec:
Packing:
  •  Description

Application:
CV/CVF is a kind of multifunctional products. It can be used to convey various medium from tap water to industrial liquid at different temperature and with different flow rate and pressure. CV type is applicable to conveying non-corrosive liquid. while CVF is suitable for slightly corrosive liquid.
Water supply: Water filter and transport in Waterworks, boosting of main pipeline, boosting in high-rise buildings.
Industrial boosting: Process flow water system, cleaning system. high-pressure washing system. fire fighting system.
Industrial liquid conveying: cooling and air-conditioning system. boiler water supply and condensing system. machine-associated purpose. acids and alkali
Water treatment: Ultrafiltration system. separator. Swimming pool
Irrigation: Farmland irrigation, irrigation, dripping irrigation.
Operation conditions:
Thin,clean,non-flammable and non-explosive liquid containing no solid granules and fibers.
Liquid temperature: -20ºC~+120ºC.
Ambient temperature: up to +50ºC.
Altitude: up to 1000m
Pump:
CV/CVF is a kind of vertical non-self priming multistage centrifugal pump. pump consist of a base and a pump head. the pressure-resistant cylinder and flow passage components are fixed between pump head and in-and-outlet section with tie-bar bolts. the inlet and outlet are located at the pump bottom at the same plane(Inline type).
Capacity scope: 0.5~90m3/h, Max. Head: 280m.
Our designs of installation and structure are according to the European standard.

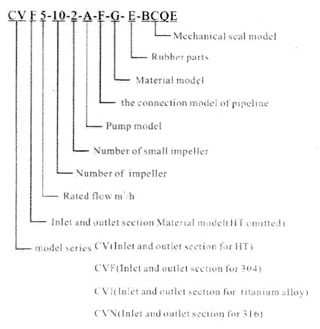

Model Symbol:



50Hz
Model P2(kW) Model P2(kW) Model P2(kW) Model P2(kW) Model P2(kW)
CV(F)1s-2 0.37 CV(F)1-2 0.37 CV(F)3-2 0.37 CV(F)5-2 0.37 CV(F)10-1 0.37
CV(F)1s-3 0.37 CV(F)1-3 0.37 CV(F)3-3 0.37 CV(F)5-3 0.55 CV(F)10-2 0.75
CV(F)1s-4 0.37 CV(F)1-4 0.37 CV(F)3-4 0.37 CV(F)5-4 0.55 CV(F)10-3 1.1
CV(F)1s-5 0.37 CV(F)1-5 0.37 CV(F)3-5 0.37 CV(F)5-5 0.75 CV(F)10-4 1.5
CV(F)1s-6 0.37 CV(F)1-6 0.37 CV(F)3-6 0.55 CV(F)5-6 1.1 CV(F)10-5 2.2
CV(F)1s-7 0.37 CV(F)1-7 0.37 CV(F)3-7 0.55 CV(F)5-7 1.1 CV(F)10-6 2.2
CV(F)1s-8 0.37 CV(F)1-8 0.55 CV(F)3-8 0.75 CV(F)5-8 1.1 CV(F)10-7 3.0
CV(F)1s-9 0.37 CV(F)1-9 0.55 CV(F)3-9 0.75 CV(F)5-9 1.5 CV(F)10-8 3.0
CV(F)1s-10 0.37 CV(F)1-10 0.55 CV(F)3-10 0.75 CV(F)5-10 1.5 CV(F)10-9 3.0
CV(F)1s-11 0.37 CV(F)1-11 0.55 CV(F)3-11 1.1 CV(F)5-11 2.2 CV(F)10-10 4.0
CV(F)1s-12 0.37 CV(F)1-12 0.75 CV(F)3-12 1.1 CV(F)5-12 2.2 CV(F)10-12 4.0
CV(F)1s-13 0.37 CV(F)1-13 0.75 CV(F)3-13 1.1 CV(F)5-13 2.2 CV(F)10-14 5.5
CV(F)1s-15 0.55 CV(F)1-15 0.75 CV(F)3-15 1.1 CV(F)5-14 2.2 CV(F)10-16 5.5
CV(F)1s-17 0.55 CV(F)1-17 1.1 CV(F)3-17 1.5 CV(F)5-15 2.2 CV(F)10-18 7.5
CV(F)1s-19 0.55 CV(F)1-19 1.1 CV(F)3-19 1.5 CV(F)5-16 2.2 CV(F)10-20 7.5
CV(F)1s-21 0.75 CV(F)1-21 1.1 CV(F)3-21 2.2 CV(F)5-18 3.0 CV(F)10-22 7.5
CV(F)1s-23 0.75 CV(F)1-23 1.1 CV(F)3-23 2.2 CV(F)5-20 3.0
CV(F)1s-25 0.75 CV(F)1-25 1.5 CV(F)3-25 2.2 CV(F)5-22 4.0
CV(F)1s-27 1.1 CV(F)1-27 1.5 CV(F)3-27 2.2 CV(F)5-24 4.0
CV(F)1s-30 1.1 CV(F)1-30 1.5 CV(F)3-29 2.2 CV(F)5-26 4.0
CV(F)1s-33 1.1 CV(F)1-33 2.2 CV(F)3-31 3.0 CV(F)5-29 4.0
CV(F)1s-36 1.1 CV(F)1-36 2.2 CV(F)3-33 3.0 CV(F)5-32 5.5
        CV(F)3-36 3.0 CV(F)5-36 5.5
Model P2(kW) Model P2(kW) Model P2(kW) Model P2(kW) Model P2(kW)
CV(F)15-1 1.1 CV(F)32-1-1 1.5 CV(F)45-1-1 3.0 CV(F)64-1-1 4.0 CV(F)90-1-1 5.5
CV(F)15-2 2.2 CV(F)32-1 2.2 CV(F)45-1 4.0 CV(F)64-1 5.5 CV(F)90-1 7.5
CV(F)15-3 3.0 CV(F)32-2-2 3.0 CV(F)45-2-2 5.5 CV(F)64-2-2 7.5 CV(F)90-2-2 11
CV(F)15-4 4.0 CV(F)32-2 4.0 CV(F)45-2 7.5 CV(F)64-2-1 11 CV(F)90-2 15
CV(F)15-5 4.0 CV(F)32-3-2 4.0 CV(F)45-3-2 11 CV(F)64-2 11 CV(F)90-3-2 18.5
CV(F)15-6 5.5 CV(F)32-3 5.5 CV(F)45-3 11 CV(F)64-3-2 15 CV(F)90-3 22
CV(F)15-7 5.5 CV(F)32-4-2 7.5 CV(F)45-4-2 15 CV(F)64-3-1 15 CV(F)90-4-2 30
CV(F)15-8 7.5 CV(F)32-4 7.5 CV(F)45-4 15 CV(F)64-3 18.5 CV(F)90-4 30
CV(F)15-9 7.5 CV(F)32-5-2 11 CV(F)45-5-2 18.5 CV(F)64-4-2 18.5 CV(F)90-5-2 37
CV(F)15-10 11 CV(F)32-5 11 CV(F)45-5 18.5 CV(F)64-4-1 22 CV(F)90-5 37
CV(F)15-12 11 CV(F)32-6-2 11 CV(F)45-6-2 22 CV(F)64-4 22 CV(F)90-6-2 45
CV(F)15-14 11 CV(F)32-6 11 CV(F)45-6 22 CV(F)64-5-2 30 CV(F)90-6 45
CV(F)15-17 15 CV(F)32-7-2 15 CV(F)45-7-2 30 CV(F)64-5-1 30
    CV(F)32-7 15 CV(F)45-7 30 CV(F)64-5 30
    CV(F)32-8-2 15 CV(F)45-8-2 30 CV(F)64-6-2 30
    CV(F)32-8 15 CV(F)45-8 30 CV(F)64-6-1 37
CV(F)20-1 1.1 CV(F)32-9-2 18.5 CV(F)45-9-2 30 CV(F)64-6 37
CV(F)20-2 2.2 CV(F)32-9 18.5 CV(F)45-9 37 CV(F)64-7-2 37
CV(F)20-3 4.0 CV(F)32-10-2 18.5 CV(F)45-10-2 37 CV(F)64-7-1 37
CV(F)20-4 5.5 CV(F)32-10 18.5 CV(F)45-10 37 CV(F)64-7 45
CV(F)20-5 5.5 CV(F)32-11-2 22 CV(F)45-11-2 45 CV(F)64-8-2 45
CV(F)20-6 7.5 CV(F)32-11 22 CV(F)45-11 45 CV(F)64-8-1 45
CV(F)20-7 7.5 CV(F)32-12-2 22 CV(F)45-12-2 45
CV(F)20-8 11 CV(F)32-12 22 CV(F)45-12 45
CV(F)20-10 11 CV(F)32-13-2 30 CV(F)45-13-2 45
CV(F)20-12 15 CV(F)32-13 30
CV(F)20-14 15 CV(F)32-14-2 30
CV(F)20-17 18.5 CV(F)32-14 30

Performance curve tolerance in conformity with ISO9906, annex A

(±10%): P2:0.37-1.5kW/1x220V or 3x380V

(Supply voltage) P2:1.5-45kW/3x220-277V or 3x380-480V

(Supply frequency): 50Hz

60Hz
Model P2(kW) Model P2(kW) Model P2(kW) Model P2(kW) Model P2(kW)
CV(F)1s-2 0.37 CV(F)1-2 0.37 CV(F)3-2 0.37 CV(F)5-2 0.55 CV(F)10-1 0.75
CV(F)1s-3 0.37 CV(F)1-3 0.37 CV(F)3-3 0.55 CV(F)5-3 1.1 CV(F)10-2 1.5
CV(F)1s-4 0.37 CV(F)1-4 0.37 CV(F)3-4 0.55 CV(F)5-4 1.1 CV(F)10-3 2.2
CV(F)1s-5 0.37 CV(F)1-5 0.55 CV(F)3-5 0.75 CV(F)5-5 1.5 CV(F)10-4 3.0
CV(F)1s-6 0.37 CV(F)1-6 0.55 CV(F)3-6 1.1 CV(F)5-6 2.2 CV(F)10-5 3.0
CV(F)1s-7 0.37 CV(F)1-7 0.75 CV(F)3-7 1.1 CV(F)5-7 2.2 CV(F)10-6 4.0
CV(F)1s-8 0.55 CV(F)1-8 0.75 CV(F)3-8 1.1 CV(F)5-8 2.2 CV(F)10-7 5.5
CV(F)1s-9 0.55 CV(F)1-9 0.75 CV(F)3-9 1.5 CV(F)5-9 2.2 CV(F)10-8 5.5
CV(F)1s-10 0.55 CV(F)1-10 1.1 CV(F)3-10 1.5 CV(F)5-10 3.0 CV(F)10-9 5.5
CV(F)1s-11 0.75 CV(F)1-11 1.1 CV(F)3-11 1.5 CV(F)5-11 3.0 CV(F)10-10 7.5
CV(F)1s-12 0.75 CV(F)1-12 1.1 CV(F)3-12 2.2 CV(F)5-12 3.0 CV(F)10-12 7.5
CV(F)1s-13 0.75 CV(F)1-13 1.1 CV(F)3-13 2.2 CV(F)5-13 4.0 CV(F)10-14 11.0
CV(F)1s-15 1.1 CV(F)1-15 1.5 CV(F)3-15 2.2 CV(F)5-14 4.0 CV(F)10-16 11.0
CV(F)1s-17 1.1 CV(F)1-17 1.5 CV(F)3-17 2.2 CV(F)5-15 4.0 CV(F)10-17 11.0
CV(F)1s-19 1.1 CV(F)1-19 2.2 CV(F)3-19 3.0 CV(F)5-16 4.0
CV(F)1s-21 1.1 CV(F)1-21 2.2 CV(F)3-21 3.0 CV(F)5-18 5.5
CV(F)1s-23 1.5 CV(F)1-23 2.2 CV(F)3-23 3.0 CV(F)5-20 5.5
CV(F)1s-25 1.5 CV(F)1-25 2.2 CV(F)3-25 4.0 CV(F)5-22 5.5
CV(F)1s-27 1.5 CV(F)1-27 3.0     CV(F)5-24 7.5
Model P2(kW) Model P2(kW) Model P2(kW) Model P2(kW) Model P2(kW)
CV(F)15-1 1.5 CV(F)32-1-1 2.2 CV(F)45-1-1 5.5 CV(F)64-1-1 7.5 CV(F)90-1-1 11
CV(F)15-2 3.0 CV(F)32-1 3.0 CV(F)45-1 7.5 CV(F)64-1 11 CV(F)90-1 15
CV(F)15-3 4.0 CV(F)32-2-2 5.5 CV(F)45-2-2 11 CV(F)64-2-2 15 CV(F)90-2-2 18.5
CV(F)15-4 5.5 CV(F)32-2-1 5.5 CV(F)45-2-1 11 CV(F)64-2-1 18.5 CV(F)90-2-1 22
CV(F)15-5 7.5 CV(F)32-2 7.5 CV(F)45-2 15 CV(F)64-2 22 CV(F)90-2 30
CV(F)15-6 11 CV(F)32-3-2 11 CV(F)45-3-2 18.5 CV(F)64-3-2 22 CV(F)90-3-2 37
CV(F)15-7 11 CV(F)32-3 11 CV(F)45-3-1 18.5 CV(F)64-3-1 30 CV(F)90-3-1 37
CV(F)15-8 11 CV(F)32-4-2 11 CV(F)45-3 18.5 CV(F)64-3 30 CV(F)90-3 45
CV(F)15-9 15 CV(F)32-4 15 CV(F)45-4-2 22 CV(F)64-4-2 37 CV(F)90-4-2 45
CV(F)15-10 15 CV(F)32-5-2 15 CV(F)45-4-1 30 CV(F)64-4-1 37
CV(F)15-12 18.5 CV(F)32-5 18.5 CV(F)45-4 30 CV(F)64-4 45
    CV(F)32-6-2 18.5 CV(F)45-5-2 30 CV(F)64-5-2 45
    CV(F)32-6 18.5 CV(F)45-5-1 30
CV(F)20-1 2.2 CV(F)32-7-2 22 CV(F)45-5 30
CV(F)20-2 4.0 CV(F)32-7 22 CV(F)45-6-2 37
CV(F)20-3 5.5 CV(F)32-8-2 30 CV(F)45-6-1 37
CV(F)20-4 7.5 CV(F)32-8 30 CV(F)45-6 37
CV(F)20-5 11 CV(F)32-9-2 30 CV(F)45-7-2 45
CV(F)20-6 11 CV(F)32-9 30 CV(F)45-7-1 45
CV(F)20-7 15 CV(F)32-10-2 30 CV(F)45-7 45
CV(F)20-8 15
CV(F)20-10 18.5

Performance curve tolerance in conformity with ISO9906, annex A

(±10%): P2:0.37-1.5kW/1x220V or 3x380V

(Supply voltage) P2:1.5-45kW/3x220-277V or 3x380-480V

(Supply frequency): 60Hz
