Product Name:BM6-8.5 series
Category:Horizonal Multi-Stage Pump
Item No.:
Spec:
Packing:
  •  Description


BM6-8.5X5T

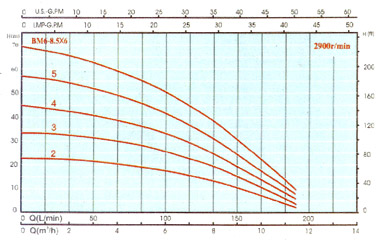

Performance curves

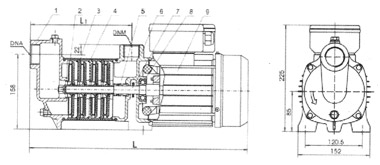

Installation Structure



1.Inlet section
2.Impeller
3.Guide vane
4.Casing
5.Mechanical Seal
6.Outlet section
7.Pump shaft
8.Bearing
9.Motor

Motor:
2-pole induction motor
Three-phase 380v/50Hz
Single-phase 220v/50Hz
Single-phase with thermal protector
Insulation class B or F
Protection IP54
Continuous duty

Applications:
Thin,clean,non-flammable and non-explosive liquid containing no solid granules and fibers.
Garden sprinkler, rain water collection
Pressure boosting of tank
Air-conditioning and cooling sytem, industrial washing and other special applications.

Operation Conditions:
Liquid temperature form +5ºC~+60ºC
Ambient temperature up to 50ºC
Max. Working pressure 16 bar





Model Power
P1(kW)
L L1 DNA DNM W(Kg) Packing size
(mm)
Qty/20º
220V/50Hz 380V/50Hz
BM6-8.5X2 BM6-8.5X2T 0.75 410 161 G1¼ G1 20 435X170X250 1566
BM6-8.5X3 BM6-8.5X3T 1.1 434 185 G1¼ G1 21 460X170X250 1449
BM6-8.5X4 BM6-8.5X4T 1.5 457 210 G1¼ G1 21 495X170X250 1359
  BM6-8.5X5T 2.2 482 235 G1¼ G1 21 520X170X250 1287
  BM6-8.5X6T 2.2 506 259 G1¼ G1 21 545X170X250 1242

220V/60Hz,110V/60Hz models are available on request
