Product Name:New Pumps
Category:New Pumps
Item No.:
Spec:
Packing:
  •  Description

Jm2-100L
MODEL INPUT POWER INLET/OUTLET Max FLOW
(L/min)
Max HEAD
(m)
Max SUCT
(m)
GW
(kg)
PACKING
DIMENSION
(mm)
QUANTITY
(set)
(Kw) (HP)
Jm1-25 0.13 0.1 1"x1" 40 32 9 8 390x178x200 1879
Jm2-70 0.5 0.7 1"x1" 60 41 9 10.8 390x178x200 1879
Jm2-100L 0.75 1 1"x1" 90 46 9 16 437x188x225 1879

Jwm150
MODEL INPUT POWER INLET/OUTLET Max FLOW
(L/min)
Max HEAD
(m)
Max SUCT
(m)
GW
(kg)
PACKING
DIMENSION
(mm)
QUANTITY
(set)
(Kw) (HP)
JWM75 0.55 0.75 1.24"x1" 75 60 30 16 423X278X230 954
JWM150 1.1 1.5 1.25"x1" 100 100 50 32.2 515x245x287 693

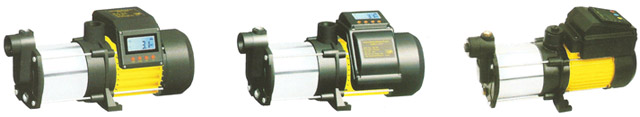

QZB-2B-1250 QZB-2C-1250 QZB-1-1250



Motor
Two-Pole induction motor(n=2900r.p.m.)
Insulation Class F
Protection Ip44
Operating conditions
Max. working pressure 4.5bar
Liquid temperature up to 40C
Total suction lift up to 7mt
Continuous duty
Material
Pump body: AISI 304
Motor Support: Cast Iron
Impeller: PPO(Noryl)
        AISI304 are availablel
Shaft with rotor: Stainless Steel
Mechanical seal: Ceramic/Graphite
Application
The pump can only be used for clear,non-harmful water or fluid without solid particle in its suspending liquid.
This type automatic water pump is mainly designed for domestic use in case of abnormal water supply or inconstant operating pressure in the supply systems programmable surface pumps with device for pressure water supply and dry running protection with automatic pump starting/stopping, pump pressure control reset button and option of manual or automatic operation.
MODEL POWER INLET/OUTLET MAXFLOW
(L/min)
MAX HEAD
(m)
MAX SUCT
(m)
GW
(kg)
PACKING
DEMENSION/OUIT
(mm)
QTY/20'CTN
(UNIT)
(KW) (HP)
QZB-XX-700 0.45 0.60 1"X1" 100 25 7 14.2 450X220X270 1030
QZB-XX-900 0.55 0.75 1"X1" 100 35 7 15 470X220X270 980
QZB-XX-1250 0.75 1.0 1"X1" 100 45 7 15.8 495X220X270 930
QZB-XX-1450 0.95 1.3 1"X1" 100 55 7 16.8 520X220X270 890
QZB-XX-1650 1.2 1.6 1"X1" 100 65 7 17.8 560X250X280 700
QZB-XX-2100 1.6 2.2 1"X1" 100 85 7 18.9 610X250X280 640
QZB-XX-2650 2.0 2.7 1"X1" 100 105 7 20 660X250X280 590
